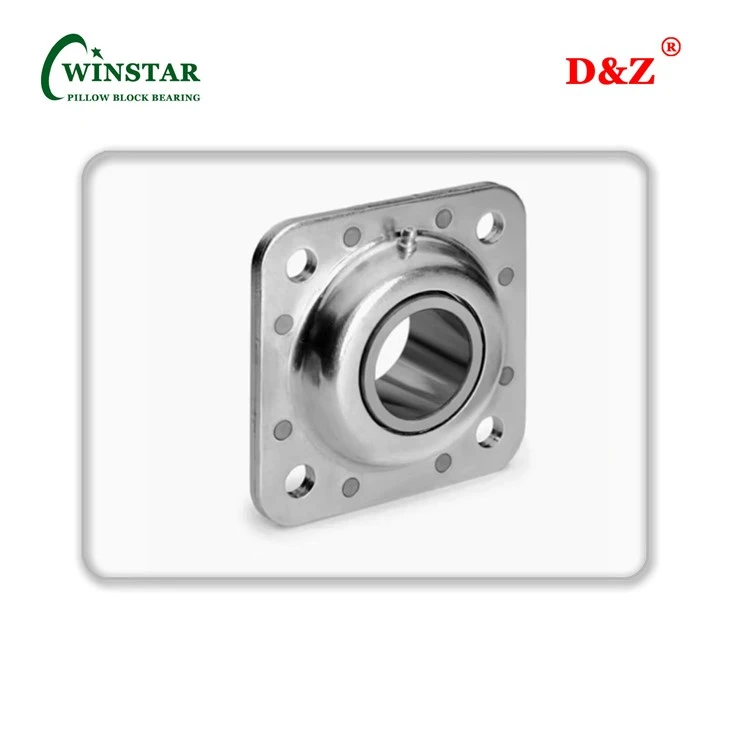

Flange Disc Harrow Bearing Unit
Flange Disc Harrow Bearing Unit belongs to a type of mounted bearing, featuring fixed bolt holes on its surface that allow it to be directly installed on equipment via bolts. It possesses good load-bearing and wear-resistant properties.
Flange Disc Harrow Bearing Unit consists of a square bearing housing formed by stamping and an insert ball bearing
The base is of a square structure, with its surface undergoing rust-proof treatment. Fixing bolt holes are distributed at the four corners and edges, facilitating installation and positioning. The central bearing mounting hole is of a truncated spherical shape, which can be matched with an outer spherical bearing to achieve automatic self-aligning.
The internal bearings are mostly double-sealed outer spherical ball bearings, with the inner ring wider than the outer ring, which can accommodate slight shaft misalignment. Additionally, lubricating grease filling holes are reserved to ensure long-term stable operation of the bearings.
Application
Agricultural machinery
Industrial conveying equipment
Ventilation equipment
Food processing equipment
Advantages
1. Easy to install
The square base design facilitates fitting and securing to the rack, with standardized installation holes that accommodate a wide range of equipment installation needs
Self-aligning: It can accommodate slight shaft misalignment, reduce wear caused by axial deviation, and extend the service life of the bearing
2. Self-aligning
It can accommodate slight shaft misalignment, reduce wear caused by axial deviation, and extend the service life of the bearing
3. Sealed and rust-proof
The bearing comes with a built-in sealing structure, and the surface of the seat body is treated with rust-proof measures, making it suitable for complex working environments that are humid and dusty
4. Easy maintenance
A reserved lubricating grease filling hole is provided, and regular replenishment of lubricating grease can ensure smooth operation, resulting in low maintenance costs.
