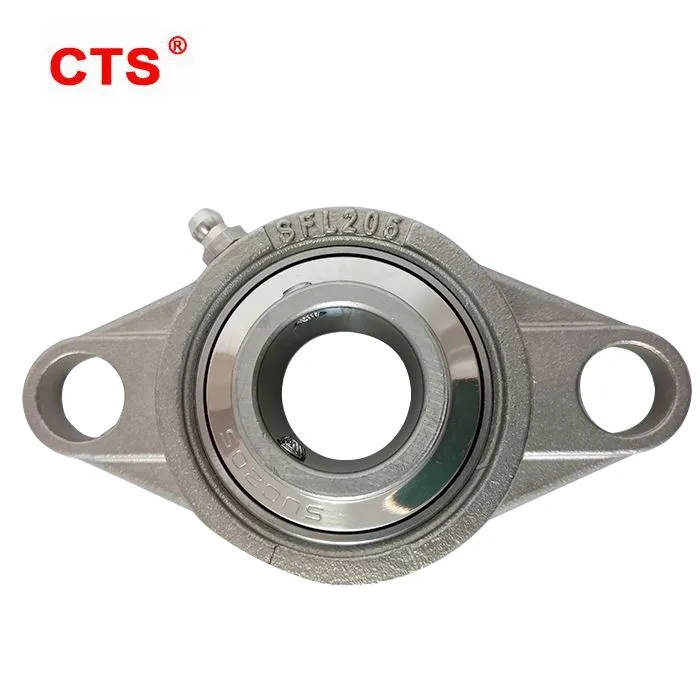

Stainless-Steel 2 Bolt Flange Bearing
Stainless-Steel 2 Bolt Flange Bearing consists of two basic components, they are stainless steel bearings and stainless steel housings. Each bearing unit consists of a sealed stainless steel bearing, which is installed in the housings. These bearings are able to accommodate for initial shaft misalignment.
Products Description
- Product Type:Stainless-Steel 2 Bolt Flange Bearing
- Brand Name:CTS or OEM
- Model Number:SSUCFL or SUCSFL series
- Material:UC Bearing: stainless steel 420,440C, 304,316L
Housings:stainless steel 201,304,316
- Certificate:ISO 9001
Products Features
Stainless-Steel 2 Bolt Flange Bearing: your best choice in harsh environments.
We are professional manufacture for high-quality stainless steel 2-bolt flange bearing units which can withstand harsh environments. These bearing units are very suitable for applications that require corrosion-resistant such as food processing, chemical processing, pharmaceuticals, marine, oil and gas industries.
CTS Stainless-Steel 2 Bolt Flange Bearing is made of high-quality stainless steel materials, ensuring its durability and reliability. This kind of bearing units are designed with solid stainless steel housings and double sealed stainless steel bearing, providing additional protection against corrosive substances and harsh environments.
Our stainless two-bolt flange bearings are manufactured with premium food-grade stainless steel and incorporate special features to extend the bearings life and improve performance.
Materials of Stainless steel bearings
| Housing | AISI 304 Stainless |
| Inner & Outer Races | AISI 420-440 Stainless |
| Cage | AISI 302 Stainless |
| Balls | AISI 420-440 Stainless |
| Seals | Rubber & AISI 302 Stainless |
| Set Screws: | AISI 420 Stainless |
| Grease Nipple: | AISI 304 |
Dimensions Of Stainless-Steel 2 Bolt Flange Bearing
| SHAFT | (mm) | Weight | ||||||||||||
| Bearing no. | din | dmm | a | e | i | b | g | L | N | E | S | bearing | housing | (kg) |
| SUCFL201 | 12 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC201 | SFL203 | 0.56 | |
| SUCFL201-8 | 1/2 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC201-8 | SFL203 | 0.56 | |
| SUCFL202 | 15 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC202 | SFL203 | 0.56 | |
| SUCFL202-10 | 5/8 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC202-10 | SFL203 | 0.56 | |
| SUCFL203 | 17 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC203 | SFL203 | 0.56 | |
| SUCFL203-11 | 11/16 | 99 | 76.2 | 15 | 57 | 11 | 25.5 | 11.5 | 33.3 | 12.7 | SUC203-11 | SFL203 | 0.56 | |
| SUCFL204 | 20 | 113 | 90 | 15 | 60 | 11 | 25.5 | 12 | 33.3 | 12.7 | SUC204 | SFL204 | 0.52 | |
| SUCFL204-12 | 3/4 | 113 | 90 | 15 | 60 | 11 | 25.5 | 12 | 33.3 | 12.7 | SUC204-12 | SFL204 | 0.52 | |
| SUCFL205 | 25 | 130 | 99 | 16 | 68 | 13 | 27 | 16 | 35.8 | 14.3 | SUC205 | SFL205 | 0.64 | |
| SUCFL205-14 | 7/8 | 130 | 99 | 16 | 68 | 13 | 27 | 16 | 35.8 | 14.3 | SUC205-14 | SFL205 | 0.64 | |
| SUCFL205-15 | 15/16 | 130 | 99 | 16 | 68 | 13 | 27 | 16 | 35.8 | 14.3 | SUC205-15 | SFL205 | 0.64 | |
| SUCFL205-16 | 1 | 130 | 99 | 16 | 68 | 13 | 27 | 16 | 35.8 | 14.3 | SUC205-16 | SFL205 | 0.64 | |
| SUCFL206 | 30 | 148 | 117 | 18 | 80 | 13 | 31 | 16 | 40.2 | 15.9 | SUC206 | SFL206 | 0.93 | |
| SUCFL206-18 | 1 1/8 | 148 | 117 | 18 | 80 | 13 | 31 | 16 | 40.2 | 15.9 | SUC206-18 | SFL206 | 0.93 | |
| SUCFL206-19 | 1 3/16 | 148 | 117 | 18 | 80 | 13 | 31 | 16 | 40.2 | 15.9 | SUC206-19 | SFL206 | 0.93 | |
| SUCFL206-20 | 1 1/4 | 148 | 117 | 18 | 80 | 13 | 31 | 16 | 40.2 | 15.9 | SUC206-20 | SFL206 | 0.93 | |
| SUCFL207 | 35 | 161 | 130 | 19 | 90 | 15 | 34 | 16 | 44.4 | 17.5 | SUC207 | SFL207 | 1.2 | |
| SUCFL207-20 | 1 1/4 | 161 | 130 | 19 | 90 | 15 | 34 | 16 | 44.4 | 17.5 | SUC207-20 | SFL207 | 1.2 | |
| SUCFL207-21 | 1 5/16 | 161 | 130 | 19 | 90 | 15 | 34 | 16 | 44.4 | 17.5 | SUC207-21 | SFL207 | 1.2 | |
| SUCFL207-22 | 1 3/8 | 161 | 130 | 19 | 90 | 15 | 34 | 16 | 44.4 | 17.5 | SUC207-22 | SFL207 | 1.2 | |
| SUCFL207-23 | 1 7/16 | 161 | 130 | 19 | 90 | 15 | 34 | 16 | 44.4 | 17.5 | SUC207-23 | SFL207 | 1.2 | |
| SUCFL208 | 40 | 175 | 144 | 21 | 100 | 15 | 36 | 16 | 51.2 | 19 | SUC208 | SFL208 | 1.59 | |
| SUCFL208-24 | 1 1/2 | 175 | 144 | 21 | 100 | 15 | 36 | 16 | 51.2 | 19 | SUC208-24 | SFL208 | 1.59 | |
| SUCFL208-25 | 1 9/16 | 175 | 144 | 21 | 100 | 15 | 36 | 16 | 51.2 | 19 | SUC208-25 | SFL208 | 1.59 | |
| SUCFL209 | 45 | 188 | 148 | 22 | 108 | 16 | 38 | 19 | 52.2 | 19 | SUC209 | SFL209 | 1.84 | |
| SUCFL209-26 | 1 5/8 | 188 | 148 | 22 | 108 | 16 | 38 | 19 | 52.2 | 19 | SUC209-26 | SFL209 | 1.84 | |
| SUCFL209-27 | 1 11/16 | 188 | 148 | 22 | 108 | 16 | 38 | 19 | 52.2 | 19 | SUC209-27 | SFL209 | 1.84 | |
| SUCFL209-28 | 1 3/4 | 188 | 148 | 22 | 108 | 16 | 38 | 19 | 52.2 | 19 | SUC209-28 | SFL209 | 1.84 | |
| SUCFL210 | 50 | 197 | 157 | 22 | 115 | 16 | 40 | 19 | 54.6 | 19 | SUC210 | SFL210 | 2.15 | |
| SUCFL210-30 | 1 7/8 | 197 | 157 | 22 | 115 | 16 | 40 | 19 | 54.6 | 19 | SUC210-30 | SFL210 | 2.15 | |
| SUCFL210-31 | 1 15/16 | 197 | 157 | 22 | 115 | 16 | 40 | 19 | 54.6 | 19 | SUC210-31 | SFL210 | 2.15 | |
| SUCFL210-32 | 2 | 197 | 157 | 22 | 115 | 16 | 40 | 19 | 54.6 | 19 | SUC210-32 | SFL210 | 2.15 | |
| SUCFL211 | 55 | 224 | 184 | 25 | 130 | 18 | 43 | 19 | 58.4 | 22.2 | SUC211 | SFL211 | 3.1 | |
| SUCFL211-32 | 2 | 224 | 184 | 25 | 130 | 18 | 43 | 19 | 58.4 | 22.2 | SUC211-32 | SFL211 | 3.1 | |
| SUCFL211-34 | 2 1/8 | 224 | 184 | 25 | 130 | 18 | 43 | 19 | 58.4 | 22.2 | SUC211-34 | SFL211 | 3.1 | |
| SUCFL211-35 | 2 3/16 | 224 | 184 | 25 | 130 | 18 | 43 | 19 | 58.4 | 22.2 | SUC211-35 | SFL211 | 3.1 | |
| SUCFL212 | 60 | 250 | 202 | 29 | 140 | 18 | 48 | 23 | 68.7 | 25.4 | SUC212 | SFL212 | 3.99 | |
| SUCFL212-36 | 2 1/4 | 250 | 202 | 29 | 140 | 18 | 48 | 23 | 68.7 | 25.4 | SUC212-36 | SFL212 | 3.99 | |
| SUCFL212-38 | 2 1/8 | 250 | 202 | 29 | 140 | 18 | 48 | 23 | 68.7 | 25.4 | SUC212-38 | SFL212 | 3.99 | |
| SUCFL212-39 | 2 7/16 | 250 | 202 | 29 | 140 | 18 | 48 | 23 | 68.7 | 25.4 | SUC212-39 | SFL212 | 3.99 | |
| SUCFL213 | 65 | 258 | 210 | 30 | 155 | 22 | 50 | 23 | 69.7 | 25.4 | SUC213 | SFL213 | 4.96 | |
| SUCFL213-40 | 2 1/2 | 258 | 210 | 30 | 155 | 22 | 50 | 23 | 69.7 | 25.4 | SUC213-40 | SFL213 | 4.96 | |
| SUCFL214 | 70 | 265 | 216 | 31 | 160 | 22 | 54 | 23 | 75.4 | 30.2 | SUC214 | SFL214 | 5.6 | |
| SUCFL214-44 | 2 3/4 | 265 | 216 | 31 | 160 | 22 | 54 | 23 | 75.4 | 30.2 | SUC214-44 | SFL214 | 5.6 | |
| SUCFL215 | 75 | 275 | 225 | 34 | 165 | 22 | 56 | 23 | 78.5 | 33.3 | SUC215 | SFL215 | 6.21 | |
| SUCFL215-47 | 2 15/16 | 275 | 225 | 34 | 165 | 22 | 56 | 23 | 78.5 | 33.3 | SUC215-47 | SFL215 | 6.21 | |
| SUCFL215-48 | 3 | 275 | 225 | 34 | 165 | 22 | 56 | 23 | 78.5 | 33.3 | SUC215-48 | SFL215 | 6.21 | |
| SUCFL216 | 80 | 290 | 233 | 34 | 180 | 22 | 58 | 25 | 83.3 | 33.3 | SUC216 | SFL216 | 7.69 | |
| SUCFL216-50 | 3 1/8 | 290 | 233 | 34 | 180 | 22 | 58 | 25 | 83.3 | 33.3 | SUC216-50 | SFL216 | 7.69 | |
| SUCFL217 | 85 | 305 | 248 | 36 | 190 | 24 | 63 | 25 | 87.6 | 34.1 | SUC217 | SFL217 | 9.15 | |
| SUCFL217-52 | 3 1/4 | 305 | 248 | 36 | 190 | 24 | 63 | 25 | 87.6 | 34.1 | SUC217-52 | SFL217 | 9.15 | |
| SUCFL218 | 90 | 320 | 265 | 40 | 205 | 24 | 68 | 25 | 96.3 | 39.7 | SUC218 | SFL218 | 10.95 | |
| SUCFL218-56 | 3 1/2 | 320 | 265 | 40 | 205 | 24 | 68 | 25 | 96.3 | 39.7 | SUC218-56 | SFL218 | 10.95 | |
Advantage of stainless steel bearings
1.Available with grease and oil lubrication
2.Chemical solvent resistant
3.Outdoor durability
4.Suitable for high and low-temperature applications
5.Heavy load rating
Applicable Industries
Food equipment Medical devices Chemical equipment Packaging machinery
