How to install ucpx10 bearings correctly?

When it comes to mechanical operations, the correct installation of bearings is crucial for ensuring the smooth and efficient functioning of machinery. As a reliable supplier of UCPX10 bearings, I understand the significance of proper installation procedures. In this blog, I'll share some essential steps and tips on how to install UCPX10 bearings correctly.

Pre - installation Preparation

Before you start the installation process, it's essential to gather all the necessary tools and equipment. You'll need a clean workbench, a torque wrench, a soft - faced hammer, a micrometer, and a set of feeler gauges. Make sure the work area is clean and free from dust, debris, and any contaminants that could potentially damage the bearing.

Inspect the UCPX10 bearing carefully. Check for any visible signs of damage, such as scratches, dents, or rust. Also, measure the inner and outer diameters of the bearing using a micrometer to ensure they meet the specified tolerances. The bearing should be stored in a dry and clean environment before installation to prevent corrosion and other forms of damage.

Examine the shaft and the housing where the bearing will be installed. The shaft should be straight and have the correct diameter and surface finish. Any burrs or rough spots on the shaft should be removed using a fine - grit sandpaper. The housing should also be clean and free from any defects. Check the housing bore for proper roundness and straightness using a feeler gauge.

Shaft and Housing Preparation

The shaft and housing play a vital role in the performance of the UCPX10 bearing. First, clean the shaft thoroughly with a suitable solvent to remove any oil, grease, or dirt. After cleaning, apply a thin layer of anti - seize compound to the shaft surface. This will prevent the bearing from seizing on the shaft during operation and make future removal easier.

For the housing, ensure that the bore is properly machined and has the correct fit for the bearing. The housing should provide a snug fit for the bearing outer ring without excessive interference. If the fit is too loose, the bearing may move within the housing, causing vibration and premature wear. On the other hand, if the fit is too tight, it can lead to excessive stress on the bearing and reduce its lifespan.

Bearing Installation

There are two main methods for installing UCPX10 bearings: the press - fit method and the heat - fit method.

Press - Fit Method

The press - fit method is suitable for small - to medium - sized bearings. Place the bearing on the shaft and align it carefully. Use a press or a soft - faced hammer to apply a gradual and even force to the bearing inner ring. Make sure the force is applied directly to the inner ring and not the outer ring to avoid damaging the bearing.

When using a press, ensure that the press is properly aligned with the shaft and the bearing. Apply the force slowly until the bearing is fully seated on the shaft. If you're using a hammer, place a soft - faced block (such as a brass or aluminum block) on the bearing inner ring and tap it gently with the hammer until the bearing is in place.

Heat - Fit Method

The heat - fit method is often used for larger bearings or when a more precise fit is required. Heat the bearing to a suitable temperature using a bearing heater. The recommended heating temperature for UCPX10 bearings is usually between 80°C and 120°C. Do not overheat the bearing, as this can damage the bearing material and reduce its performance.

Once the bearing has reached the appropriate temperature, quickly place it on the shaft. The bearing will expand when heated and contract as it cools, creating a tight fit on the shaft. Make sure the bearing is aligned correctly during installation.

Mounting the Bearing in the Housing

After the bearing is installed on the shaft, it's time to mount it in the housing. Carefully lower the shaft with the bearing into the housing bore. Ensure that the bearing outer ring is properly seated in the housing.

For some applications, you may need to use a locking device to secure the bearing in the housing. This can be a set screw, a locking collar, or a snap ring. Follow the manufacturer's instructions when installing the locking device to ensure proper operation.

Alignment and Adjustment

Proper alignment is essential for the long - term performance of the UCPX10 bearing. Misalignment can cause uneven loading on the bearing, leading to premature wear and failure. Use alignment tools such as laser alignment systems or dial indicators to check the alignment of the shaft and the housing.

If misalignment is detected, make the necessary adjustments. This may involve shimming the housing or adjusting the position of the machinery. Ensure that the shaft and the housing are parallel and that the bearing is centered within the housing.

Lubrication

Lubrication is a critical aspect of bearing installation and operation. UCPX10 bearings require proper lubrication to reduce friction, prevent wear, and dissipate heat. Choose a lubricant that is suitable for the operating conditions of the bearing, such as the temperature, speed, and load.

Apply the lubricant according to the manufacturer's recommendations. For some bearings, the lubricant may be pre - packed at the factory. In other cases, you'll need to add lubricant during installation. Make sure the lubricant is evenly distributed throughout the bearing.

Additional Considerations

There are various types of bearing housings available for UCPX10 bearings, each with its own advantages and applications. For example, Tapped - base Pillow Blocks are commonly used in applications where easy mounting and adjustment are required. They provide a stable support for the bearing and can be easily installed on a flat surface.

Ductile Iron Housing And Units offer high strength and durability. They are suitable for heavy - duty applications where the bearing is subjected to high loads and vibrations.

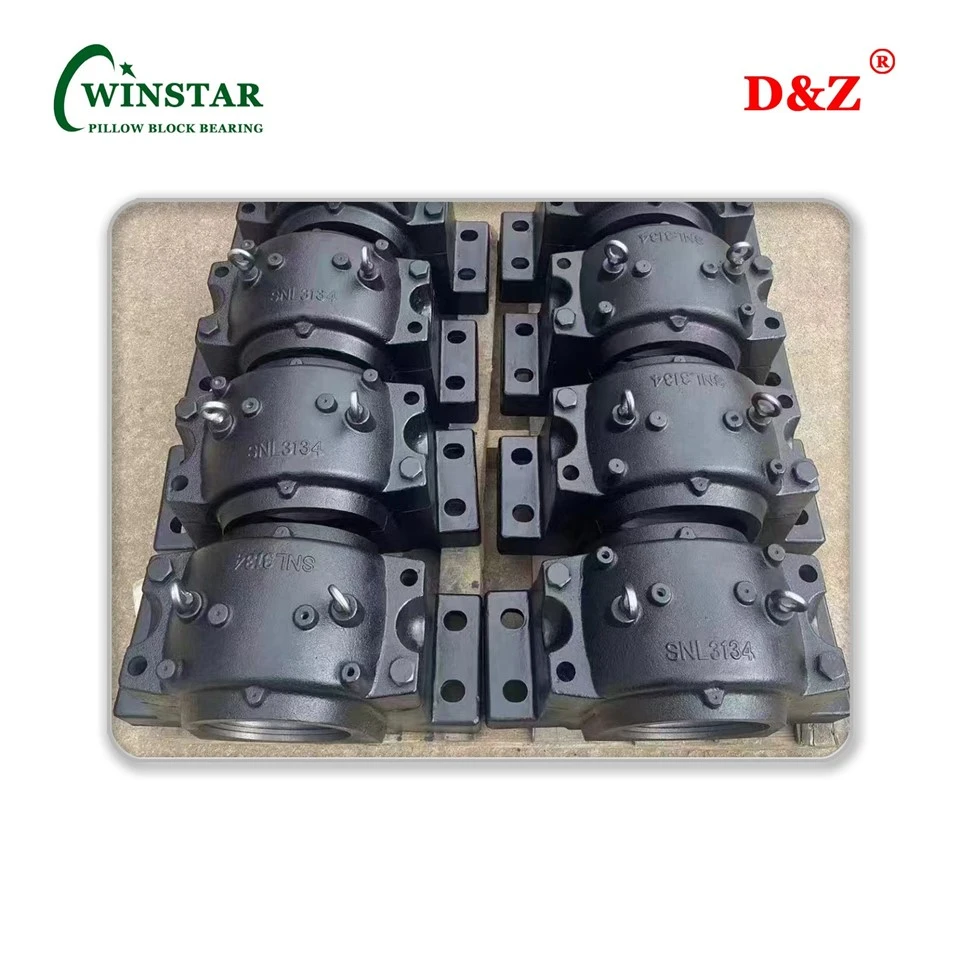

Split Plummer Block Housing, SNL Series Units are designed for easy installation and maintenance. The split design allows for quick access to the bearing, making it easier to inspect, replace, or service the bearing.

Conclusion

Installing UCPX10 bearings correctly is a multi - step process that requires careful attention to detail. By following the steps outlined in this blog, you can ensure that your UCPX10 bearings are installed properly and will perform optimally.

As a UCPX10 bearings supplier, I'm committed to providing high - quality bearings and technical support to our customers. If you have any questions about UCPX10 bearing installation or need assistance with your bearing selection, please don't hesitate to contact us for further procurement discussions. We're here to help you make the most of your mechanical operations.

References

• Bearing Installation Manuals from Bearing Manufacturers
• Machinery's Handbook for Mechanical Installation Guidelines
