What is the viewing angle of '22244 cc w33' (if applicable)?
Sep 28, 2026
Hey there! As a supplier of '22244 cc w33', I often get asked about all sorts of technical details, and one question that's come up a few times is about the viewing angle of the bearing. Now, when we talk about the bearing, we're mainly referring to a type of spherical roller bearing. These babies are designed to handle heavy radial loads and some axial loads in both directions, and they're a popular choice in a bunch of industrial applications.

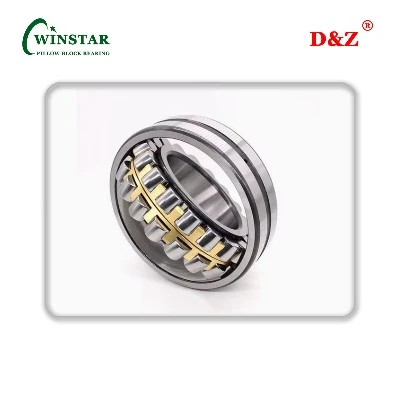

viewing angle of '22244 cc w33' spherical roller bearings
Let's put it straight - the term "viewing angle" doesn't really have a traditional meaning when it comes to the bearing. Unlike a TV screen or a camera lens where the viewing angle describes the range from which you can clearly see the image, spherical roller bearings aren't measured in that way. But what we can talk about is the misalignment angle, which is a bit of a close relative in the technical world.
The misalignment angle for the Self-aligning roller bearing is a key feature. These bearings are super flexible and can accommodate a certain degree of misalignment between the shaft and the housing. This is crucial because in real - world industrial setups, it's almost impossible to perfectly align all the components. The misalignment angle allows the bearing to function smoothly even when there's a slight skew between the shaft and the housing.
Bearing Cage Series

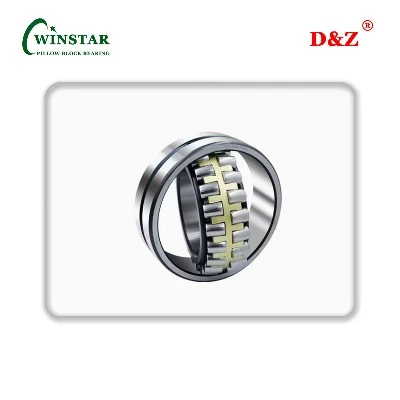

the Self-aligning roller bearing CC family
The '22244 cc w33' is part of the Self-aligning roller bearing CC family. These bearings are known for their self - aligning capabilities. The 'cc' in the designation usually indicates a type of design modification, often related to the internal structure of the bearing to enhance its performance. And the 'w33' part? That means the bearing comes with a lubrication groove and holes in the outer ring, which helps in better lubrication and cooling during operation.
the Self-aligning roller bearing CA
Another type of Self-aligning roller bearing that's kind of related to our '22244 cc w33' is the Self-aligning roller bearing CA. The CA design has a different internal structure compared to CC. The CA design usually has a machined brass cage, which gives it a bit of a different feel and performance characteristics. But in terms of misalignment, both types can handle a decent amount of it.
the Self-aligning roller bearing MB
Then there's the Self-aligning roller bearing MB Type. This type also has its own unique features. The MB design might be more suitable for some specific applications where different load distributions or speed requirements are present. However, just like the CC and CA types, the MB type spherical roller bearing can also accommodate a certain level of misalignment.
the actual misalignment angle for '22244 cc w33'
When it comes to the actual misalignment angle for the bearing, it typically ranges from about 1 to 2 degrees. This might not sound like a lot, but in the world of mechanical engineering, this small range can make a huge difference. It allows the bearing to adapt to real - world situations where the equipment might be subject to vibrations, thermal expansion, or minor installation errors.
To put it into perspective, imagine you're installing a large - scale conveyor system. There are multiple shafts and bearings involved, and it's really hard to get everything perfectly in line. If you use '22244 cc w33' bearings, you don't have to stress too much about getting that exact alignment. The bearing's ability to handle misalignment means that the whole system can keep running smoothly without premature wear and tear.
Bearing Operating Under Misaligned Conditions Without Adaptive Capacity Leads to Multiple Problems
Now, let's talk about why this misalignment angle is so important for the performance of the bearings.
Uneven load distribution
When a bearing is forced to operate under misaligned conditions and it doesn't have the ability to adapt, it can lead to all sorts of problems. For instance, uneven loading can occur, which means that certain parts of the bearing will experience more stress than others. This uneven stress can cause premature failure of the bearing, leading to costly downtime for your equipment.
overheat
Moreover, if the misalignment is too severe and the bearing can't handle it, it can also cause excessive heat generation. Heat is the enemy of bearings because it can break down the lubricant, leading to increased friction and wear. And as we all know, wear and tear in a bearing can lead to reduced efficiency, increased noise levels, and eventually, complete failure of the bearing
conclution
So, in essence, the misalignment angle of '22244 cc w33' (the closest thing we have to a "viewing angle") is a key selling point. It offers reliability and durability in a wide range of industrial applications. Whether you're in the mining industry, where heavy - duty equipment is constantly under stress, or in the manufacturing sector, where precision and continuous operation are crucial, the bearings can be a great choice.
If you're in the market for high - quality bearings and are considering the bearing, I'd love to talk to you. Whether you have more questions about the misalignment angle, the design features, or just want to discuss how they can fit into your specific application, I'm here to help. Get in touch and let's talk about how we can make your industrial operation even more efficient and reliable.
FAQ
Q: What is a spherical roller bearing?
A: Key Design Features
- Self-aligning shape: The curved outer raceway lets the inner ring and rollers tilt slightly (usually between 1° and 2.5°) to compensate for shaft deflection or installation errors.
- Dual rows of rollers: Two rows of symmetrical or asymmetrical barrel-shaped rollers share heavy loads evenly.
- Load capacity:
Built to withstand immense radial loads and simultaneous moderate axial (thrust) loads in both directions.
- Bore options: Available with standard cylindrical bores or tapered bores for easy mounting using adapter sleeves.
Q: What are spherical bearings used for?
A: Main Types and Uses
Spherical Plain Bearings: These use a sliding contact surface instead of rolling elements. They are used in slow-moving, oscillating, or pivoting joints. Common uses include vehicle suspension and steering linkages, hydraulic cylinder rod ends, and construction equipment like excavator arms.
Spherical Roller Bearings: These contain barrel-shaped rollers that rotate under continuous heavy loads. They are used in high-stress industrial machinery where shafts might bend or vibrate. Common uses include mining conveyors, industrial gearboxes, wind turbine main shafts, and paper machine rolls.
